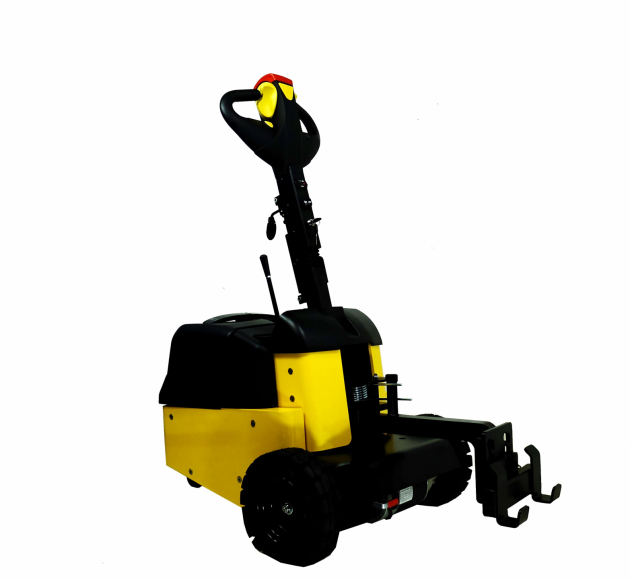

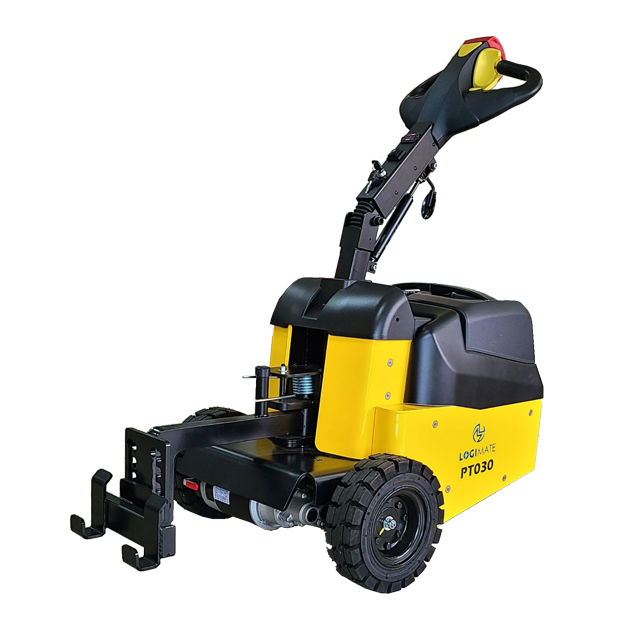

Power Tug PT030
Description：
-Interchangeable battery pack
-Electric Hydraulic weight transfer system
-Auto center-aligned Coupler
-Tool free height adjustable coupler
-Emergency stop switch
-Anti-crush button
-Ergonomic tillerhead, height and angle adjustable
-Wheels disengaing device, free to move tuger manually
-Electromagnetic parking brake
-Optional weight ballat available (PT030)
-Customer made coupling adaptor
-Non marking solid tire
-
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**Voltage DC 24V Driving Motor 1500W Towing Capacity 3000 kgs / 6600 lbs Payload NA Speed 0.1~4 km/h Controller Curtis Brand Battery 50Ah / 12V x 2 Charger 24V / 4A off board Dimmension (LxWxH) 1160 x 672 x 1215 mm
46" x 66" x 48"Weight (w/Battery) 220 Kgs / 484 lbs Drive Wheel Ø265x80x2 pcs Support Wheel Ø100 x 30
-
Technical Data
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**Voltage DC 24V Driving Motor 1500W Towing Capacity 3000 kgs / 6600 lbs Payload NA Speed 0.1~4 km/h Controller Curtis Brand Battery 50Ah / 12V x 2 Charger 24V / 4A off board Dimmension (LxWxH) 1160 x 672 x 1215 mm
46" x 66" x 48"Weight (w/Battery) 220 Kgs / 484 lbs Drive Wheel Ø265x80x2 pcs Support Wheel Ø100 x 30
