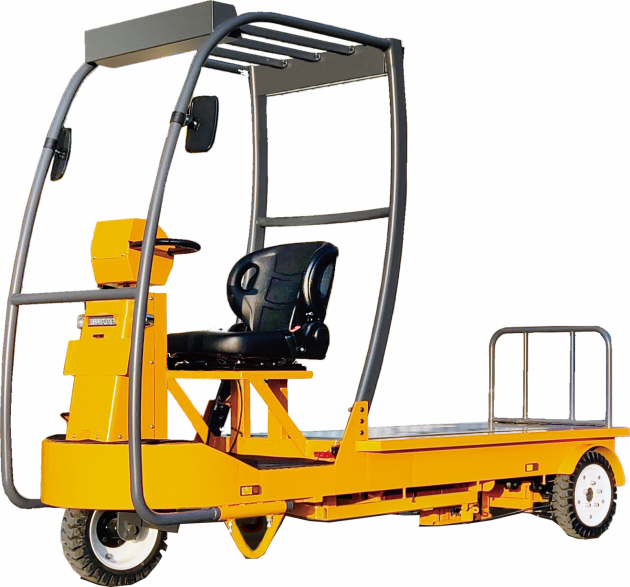

Power Wagon VC33-5T
Description：
-Comfortable sliding seat, backrest angle adjustable, seat belt
-Safety parking hand brake

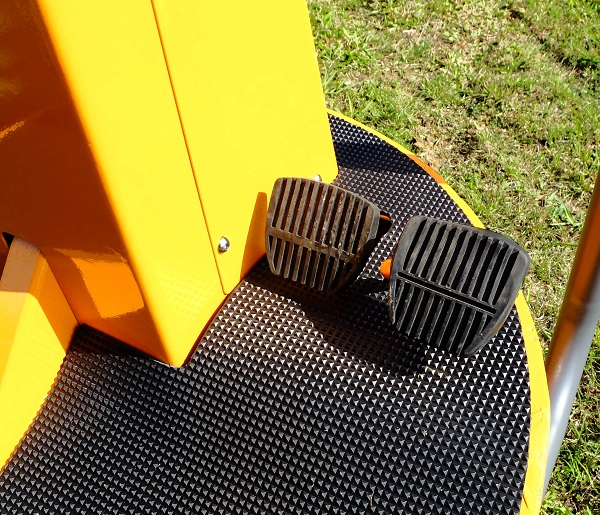

-Foot speed pedal & brake pedal operated like car

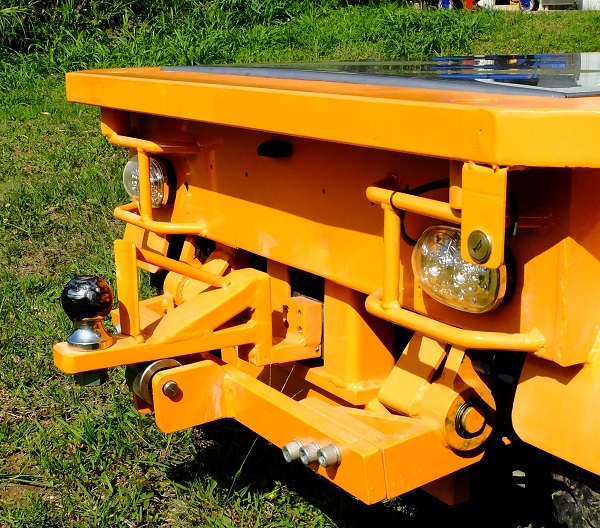

-Custom made coupling adaptor
-Coupler with electric hydraulic weight transfer system

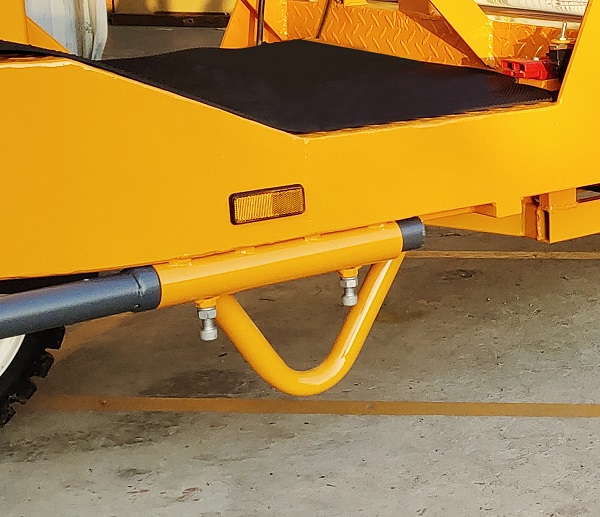

-Anti tip LH & RH triangle bar
-Solid rubber tires
-LED Front/Rear Lamp, LH & RH Blinker
-Safety parking hand brake
-Foot speed pedal & brake pedal operated like car
-Custom made coupling adaptor
-Coupler with electric hydraulic weight transfer system
-Anti tip LH & RH triangle bar
-Solid rubber tires
-LED Front/Rear Lamp, LH & RH Blinker
- Optional safety protective roll cage
-
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**
MODEL VC33-5T Driving Motor AC 48V 7.5 kW Platform Payload 1000 kgs / 2200 lbs Towing Capacity* 5000kg / 11000 lbs* Max Speed 15 km/k / 9.375 mph Climbing Ability 12° Controller Curtis Brand Battery 190 Ah / 8V x 6pcs Charger 48V / 25A Off-Board Weight (w/Battery) 845 kgs / 1859 lbs Front Wheel 400-8 x 1 (Solid) Rear Wheel 400-8 x 2 (Solid) Overall (LxWxH) 3120 x 1020 x 2150 mm
123" x 40" x 85"Wheel Base (Y) 1985 mm / 78" Turning Radius 2300mm / 91" Platform Height 520 mm / 20" Platform dimension
(L x W)1660 x 1020 mm
65" x 40"Ground Clearance (h1) 150 mm / 5.9" Tillerhead Height (h4) 790 mm / 31" Towbar Height (S) 300~350mm / 11.8"~13.8" Backrest Height(h3) 870 mm / 34.2" Feet Panel Height (h2) 430 mm / 16.9"
-
Technical Data** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**
MODEL VC33-5T Driving Motor AC 48V 7.5 kW Platform Payload 1000 kgs / 2200 lbs Towing Capacity* 5000kg / 11000 lbs* Max Speed 15 km/k / 9.375 mph Climbing Ability 12° Controller Curtis Brand Battery 190 Ah / 8V x 6pcs Charger 48V / 25A Off-Board Weight (w/Battery) 845 kgs / 1859 lbs Front Wheel 400-8 x 1 (Solid) Rear Wheel 400-8 x 2 (Solid) Overall (LxWxH) 3120 x 1020 x 2150 mm
123" x 40" x 85"Wheel Base (Y) 1985 mm / 78" Turning Radius 2300mm / 91" Platform Height 520 mm / 20" Platform dimension
(L x W)1660 x 1020 mm
65" x 40"Ground Clearance (h1) 150 mm / 5.9" Tillerhead Height (h4) 790 mm / 31" Towbar Height (S) 300~350mm / 11.8"~13.8" Backrest Height(h3) 870 mm / 34.2" Feet Panel Height (h2) 430 mm / 16.9"
