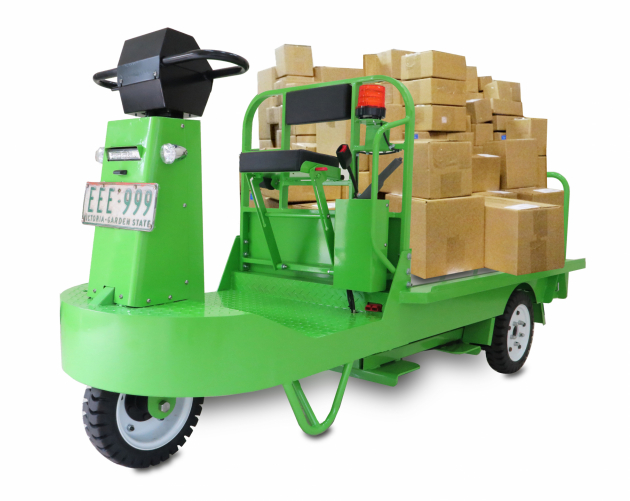

Power Wagon VC33
-
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**MODEL VC33 Driving Motor DC 36V 3.0 kW Platform Payload 1000 kgs / 2200 lbs Towing Capacity* NA Max Speed 15 km/k / 9.375 mph Climbing Ability 12° Controller Curtis Brand Battery 225 Ah / 6V x 6pcs Charger 36V / 25A Off-Board Weight (w/Battery) 630 kgs / 1386 lbs Front Wheel 400-8 x 1 (Solid) Rear Wheel 400-8 x 2 (Solid) Overall (LxWxH) 2870 x 1020 x 1300mm
113"x40"x51"Wheel Base (Y) 1885 mm / 74" Turning Radius 2200 mm / 87" Platform Height 520 mm / 20" Platform dimension
(L x W)1800 x 1020 mm
71" x 40"Ground Clearance (h1) 150 mm / 5.9" Tillerhead Height (h4) 790 mm / 31" Towbar Height (S) NA Backrest Height(h3) 870 mm / 34.2" Feet Panel Height (h2) 430 mm / 16.9"
-
Technical Data
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**MODEL VC33 Driving Motor DC 36V 3.0 kW Platform Payload 1000 kgs / 2200 lbs Towing Capacity* NA Max Speed 15 km/k / 9.375 mph Climbing Ability 12° Controller Curtis Brand Battery 225 Ah / 6V x 6pcs Charger 36V / 25A Off-Board Weight (w/Battery) 630 kgs / 1386 lbs Front Wheel 400-8 x 1 (Solid) Rear Wheel 400-8 x 2 (Solid) Overall (LxWxH) 2870 x 1020 x 1300mm
113"x40"x51"Wheel Base (Y) 1885 mm / 74" Turning Radius 2200 mm / 87" Platform Height 520 mm / 20" Platform dimension
(L x W)1800 x 1020 mm
71" x 40"Ground Clearance (h1) 150 mm / 5.9" Tillerhead Height (h4) 790 mm / 31" Towbar Height (S) NA Backrest Height(h3) 870 mm / 34.2" Feet Panel Height (h2) 430 mm / 16.9"
