Power Wagon VC-31

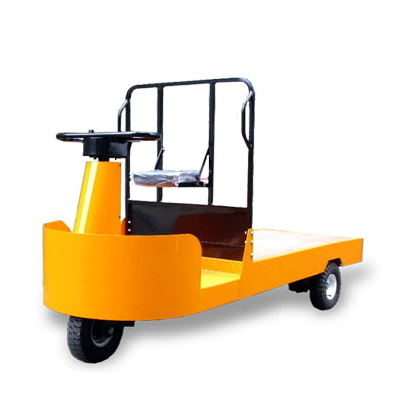

Power Wagon VC-1
Description：
- Automatic Charging System
- Electromagentic Brake
- Synthetic Gear Box
- Max Payload 800 kg
-
MODEL VC-1 Dimension (L x W x H) 2870 x 855 x 1520 (mm) Platform Dimesion 2090 x 855 x 1000 (mm) Weight 484 kg (w/Battery) Tire Size FRT 400-8 x 1 Solid Tyre
RR 400-8 x 2 Solid TyreAxial Base 1370 mm Electric Motor DC 24V (DC 36V Optional) Battery 6V 225Ah x 4 (6V 225Ah x 6 Optional) Charger Automatic Charging System Charging Duration >6hrs Brake System Electromagnetic Brake Transmission System Synthetic Gear Box (Combination of motor and differential Gear) Turning Radius 1600 mm Speed 11 kph Cruise Range 30 km (40km on 36V motor) Max. Payload 800 kg Incline Capability 24V Motor: 3° (loaded), 8°(empty)
36V Motor: 8.5° (loaded), 12° (empty)** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**
-
Technical Data
MODEL VC-1 Dimension (L x W x H) 2870 x 855 x 1520 (mm) Platform Dimesion 2090 x 855 x 1000 (mm) Weight 484 kg (w/Battery) Tire Size FRT 400-8 x 1 Solid Tyre
RR 400-8 x 2 Solid TyreAxial Base 1370 mm Electric Motor DC 24V (DC 36V Optional) Battery 6V 225Ah x 4 (6V 225Ah x 6 Optional) Charger Automatic Charging System Charging Duration >6hrs Brake System Electromagnetic Brake Transmission System Synthetic Gear Box (Combination of motor and differential Gear) Turning Radius 1600 mm Speed 11 kph Cruise Range 30 km (40km on 36V motor) Max. Payload 800 kg Incline Capability 24V Motor: 3° (loaded), 8°(empty)
36V Motor: 8.5° (loaded), 12° (empty)** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**
